SSB FIXED CURTAINS FOR SMOKE CONTROL
SSB DH-60/DA-150 Fixed curtain for smoke control
Description
Tecnitex SSB DH-60/DA-150 is a static textile system designed to create deposits or channels for the accumulation or guiding of smoke to areas where it may be evacuated in case of fire.
Protective purpose
- Protection and non-penetration of smoke for 60 minutes at 1000ºC (DH-60).
- Protection and non-penetration of smoke for 150 minutes at 600ºC (DA-150).
- Lightness (450g/m2).
- Different colours and finishes.
Characteristics
The system is made up of technical textile reference TECTEX 450/PU/2, made from class E fibreglass, covered with flame retardant polyurethane on both sides, the covering providing high non-penetration of smoke, not exceeding a 25m3/h·m2 leak rate.
Technical diagram

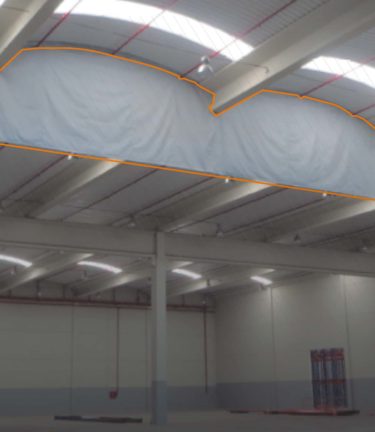

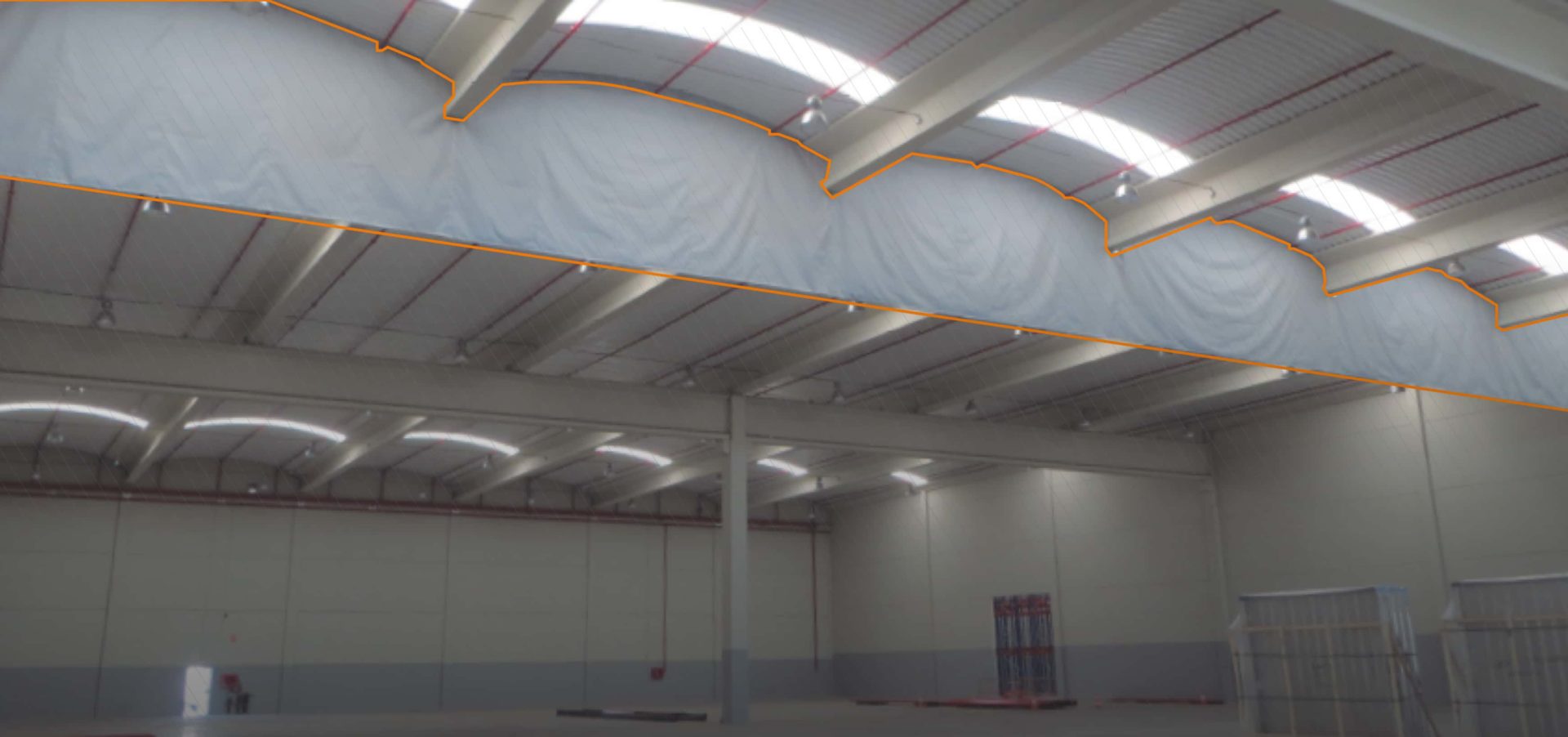

- The TECNITEX SSB DH-60/DA-150 system is specially designed to be installed in large warehouses or logistics centres.
- It is a light, effective, economical system for areas where the fixed position of the barrier does not interfere with the operation or activities of the premises.
- *Note: We have a wide range of profile trims and finishes for fitting against ceilings.
Components of the system
- Profile made from galvanised sheet metal with minimum thickness of 1.2mm.
- TECTEX 450-PU/2 technical textile in different finishes.
- Counterweight or retaining element:
– Tension cable.
– SSB DH-60/DA-150 b) Metallic screen or profile, maximum weight 5kg/ml.
| BOX | MAXIMUM DIMENSIONS (A) | BOX DIMENSIONS (E/F) mm | |
| SERIE-S22 | Up to 5500 wide (depending on height) | 220X220 | |
| SERIE-S22 | Up to 8000 high for max. width of 3500 | 220X220 | |
| BOX | MAXIMUM DIMENSIONS (A) mm | BOX DIMENSIONS (E/F) mm | |
| WIDTH (A) mm | HEIGHT (B) mm | ||
| SERIE-R22 | 12000 | 6500 | 220X220 |
| SERIE-R24 | 12000 | 8000 | 240X260 |
| GUIDES | MAXIMUM DIMENSIONS | GUIDE DIMENSIONS (H/G) mm | |
| WIDTH (A) mm | HEIGHT (B) mm | ||
| SG-120 | 12000 | Up to 4500 | 70X120 |
| SG-130 | 12000 | > 4500 | 70X130 |
System of Smoke Control Curtains
