SIMPLE AUTOMATED MOBILE CURTAIN FOR SMOKE CONTROL
MSB DH-60/DA-150 Simple mobile curtain for smoke control
Description
- Protection and non-penetration of smoke for 60 minutes at 1000ºC (DH-60).
- Protection and non-penetration of smoke for 150 minutes at 600ºC (DA-150).
- System on a single roller without overlaps.
- Adaptable to multiple installation configurations.
The MSB mobile curtains are made up of technical textile reference 450/PU/2 of fibreglass covered on both sides with polyurethane, a flame retardant material which facilitates the manipulation of the textile while providing greater rigidity, non-penetration of smoke, and preventing it from fraying.
This material is also water repellent and has great resistance to cutting and acids.
Technical diagram

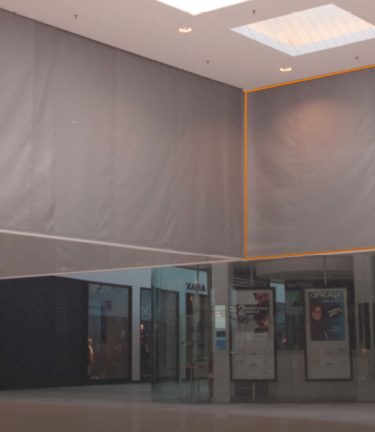

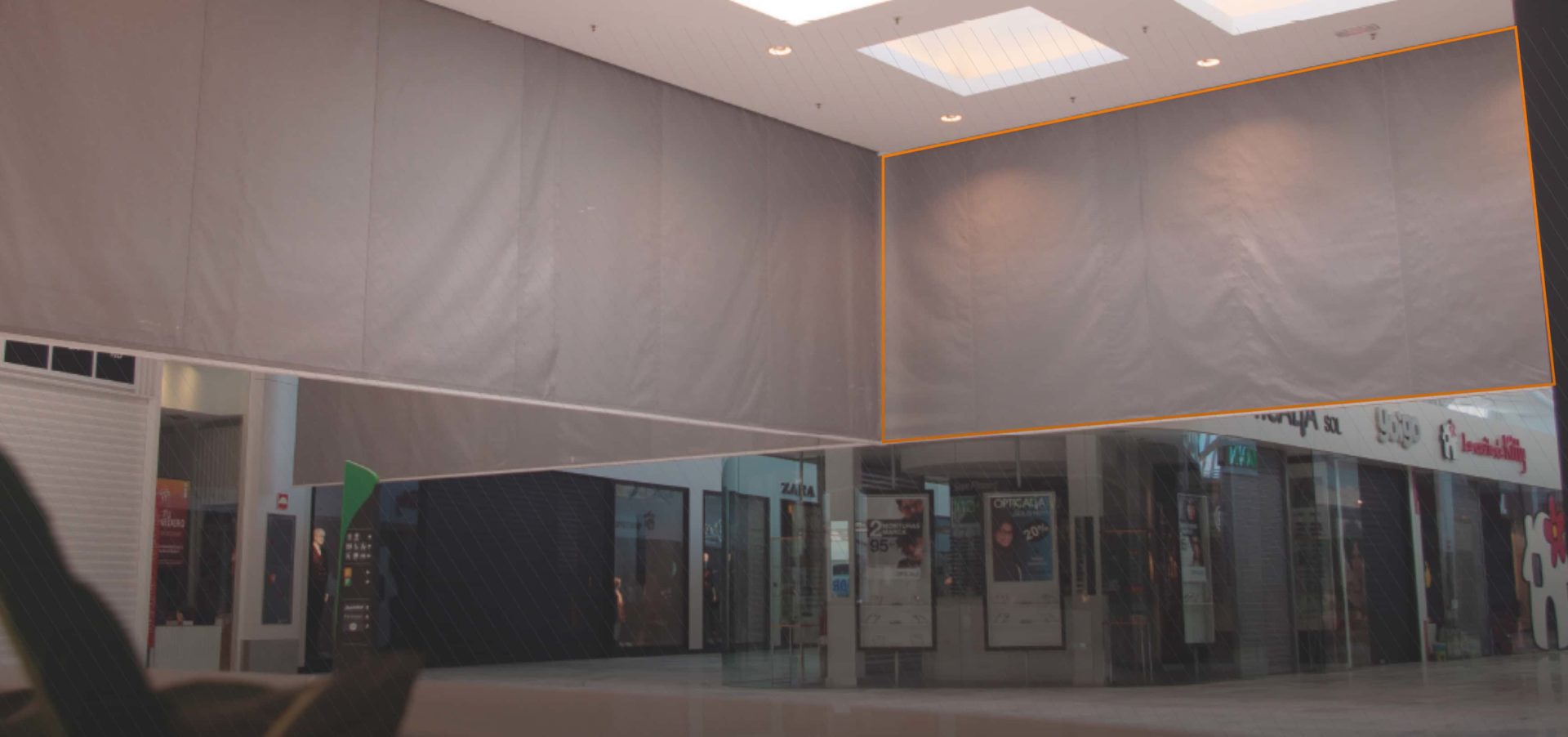

The TECNITEX MSB DH-60/DA-150 smoke control curtains are installed in order to completely close the smoke deposit, lowering to floor level with ASB-3 & ASB-4 systems, or leaving a free space of 2.5m from ground level to the counterweight bar of the system in its unfolded position with ASB-1 & ASB-2 systems.
*Note: We have a wide range of profile trims and finishes for fitting against ceilings.
*Nota: Only in the case of planning for a movement or deflection allowing the emission of smoke into the adjoining deposit will lateral guides or deflectors be installed.
I'm interested
| BOX | MAXIMUM DIMENSIONS (A) | BOX DIMENSIONS (E/F) mm | |
| SERIE-S22 | Up to 5500 wide (depending on height) | 220x220mm | |
| SERIE-S22 | Up to 8000 high for max. width of 3500 | 220x220mm | |
| BOX | MAXIMUM DIMENSIONS (A) mm | BOX DIMENSIONS (E/F) mm | |
| WIDTH (A) mm | HEIGHT (B) mm | ||
| SERIE-R22 | 12000 | 6500 | 220x220mm |
| SERIE-R24 | 12000 | 8000 | 240x260mm |
| GUIDES | MAXIMUM DIMENSIONS | GUIDE DIMENSIONS (H/G) mm | |
| WIDTH (A) mm | HEIGHT (B) mm | ||
| SG-120 | 12000 | Up to 4500 | 70x120mm |
| SG-130 | 12000 | > 4500 | 70x130mm |
