Horizontal fire curtain system

Fire Curtain System MFBH E-120

Description

TECNITEX MFBH E-120 is a horizontal fire curtain designed to create horizontal fire compartmentation between different levels of a building. Its sectorizing function guarantees integrity against direct flames or temperatures of over 1000ºC for 120 minutes, helping to prevent fire from spreading to higher levels.
Protection objective

These are the main protection features of the MFBH E-120 horizontal fire curtain:

    • Preventing the propagation of flames to higher levels.
    • Fire resistance of 120 minutes at more than 1000ºC (Integrity, E).
    • Large dimensions, defined for each project according to the opening to be protected.
How does the MFBH E-120 horizontal fire curtain work?

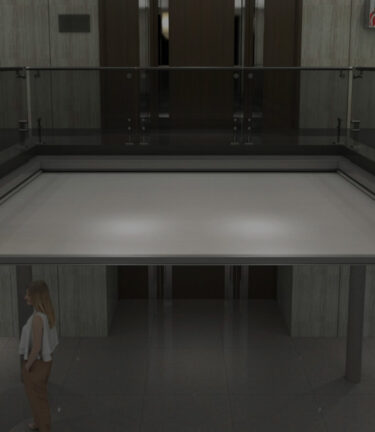

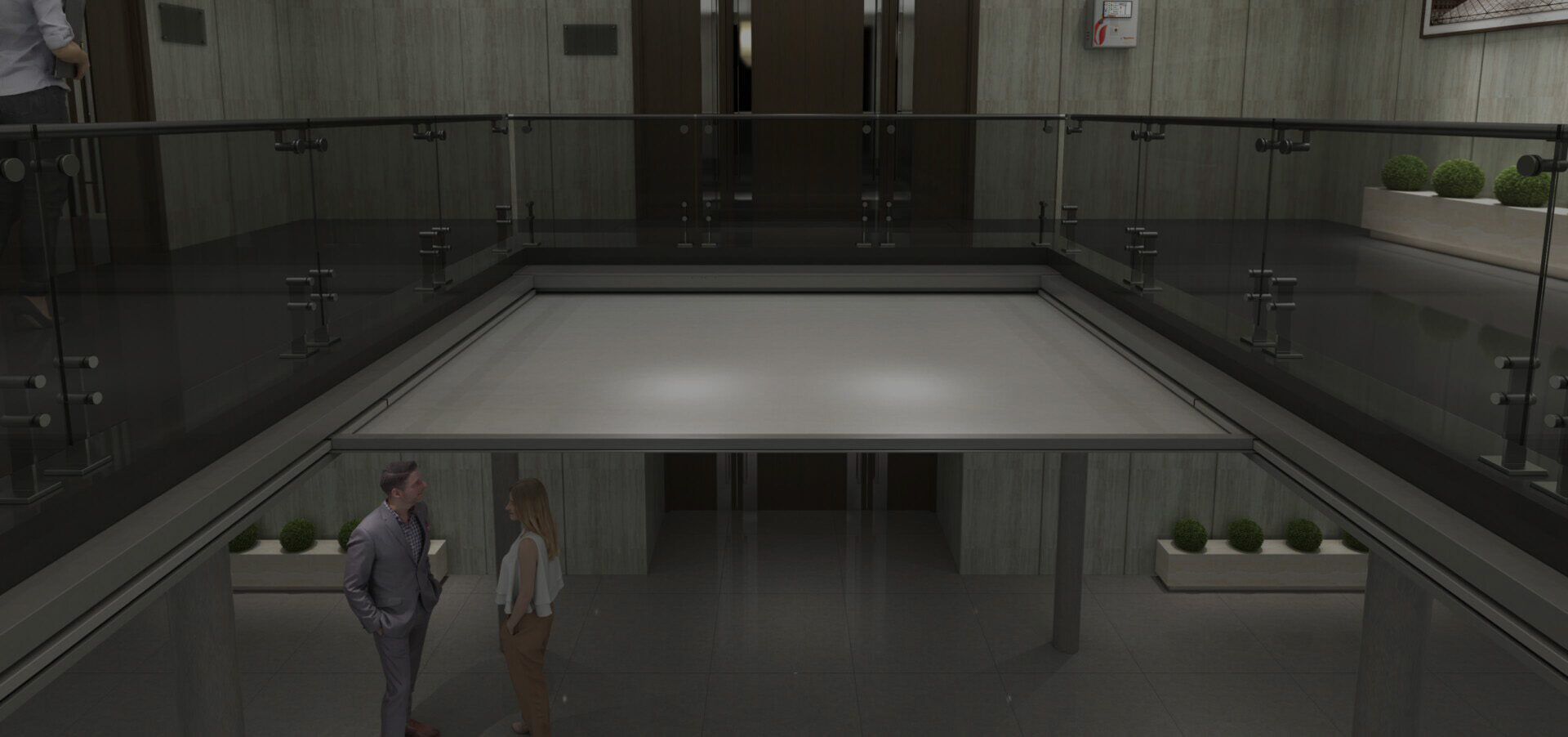

Most fire curtains work vertically: they close openings in walls or between spaces on the same level. The MFBH E-120 is installed in a horizontal plane instead, closing openings in the floor or slab that connect one level with another.

Horizontal fire curtains are needed when the fire risk does not come from an adjacent space, but from the level below. By sealing that opening, the curtain separates the levels and keeps the fire on the level where it starts.

Where can the MFBH E-120 horizontal fire curtain be used?

The MFBH E-120 is intended for buildings that need fire compartmentation between different levels: horizontal openings that connect floors and could allow flames to spread upwards in case of fire. In these situations, a horizontal fire curtain closes the opening and helps contain the fire on the level where it starts.

Key features of the MFBH E-120 horizontal fire curtain
  • Technical textile TECTEX 710-PU/IN/2.
  • Made from class E fibreglass reinforced with Inconel steel.
  • Coated on both sides with a flame-retardant polyurethane compound.
  • Horizontal configuration designed for fire compartmentation between levels.
  • Side guides with a fabric retention system along their entire length.
  • SMK motors, depending on the model, with TGFS (Total Gravity Controlled Fail Safe Solution) technology.
  • Series-SH box: 280 × 170 mm (E/F). Maximum dimensions are determined for each project.

Exploded view

  1. Housing, depending on model, made from galvanized-sheet metal.
  2. Removable supports for forming the box and holding the roller (depending on model). Front and lower openings made with rounded edges without sharp edges or corners.
  3. Roller with ogive for rolling the textile.
  4. Roller for unwinding the fabric.
  5. SMK motors according to model with technology. TGFS (Total Gravity Controlled Fail Safe Solution).
  6. Side guides with fabric retention system over its entire length.
  7. Fabric retention system along the entire length of the curtain for proper insulation from fire and smoke (optional).
  8. Technical fiberglass fabric with different finishes depending on the model and system classification.
  9. Fabric retention bar.
I'm interested
BOX MAXIMUM DIMENSIONS (A) mm BOX DIMENSIONS (E/F) mm
SERIE-SHTo determinate280x170mm

Frequently asked questions

  • A horizontal fire curtain is a fire curtain installed in a horizontal plane to close openings between different levels of a building. The MFBH E-120 is TECNITEX’s horizontal fire curtain, with E-120 integrity.

  • Openings that connect different levels can let flames spread upwards. A horizontal fire curtain closes them so each level stays a separate fire compartment.

  • Vertical fire curtains close openings in walls or between spaces on the same level. Horizontal fire curtains close openings in the floor plane that connect different levels. The difference is where they are installed and what they separate, not the fire classification.

  • In buildings with horizontal openings between floors where fire compartmentation between levels is required to stop flames spreading upwards.
