CONCEALED FIRE CURTAIN

Concertina fire curtain MFB-BLIND E-120

Description

The MFB-BLIND E-120 is a concertina fire curtain by Tecnitex, designed to compartmentalise spaces in the event of a fire. Unlike other concertina curtains, it requires no side guides, so the protected area can remain completely open. It stays concealed in its head box and deploys automatically when activated.

How does the MFB-BLIND E-120 concertina fire curtain work?

In everyday use, the MFB-BLIND E-120 remains folded inside its head box, keeping the space open. When it receives an activation signal from the control panel or any fire detection element in the building, it deploys automatically and in a controlled manner.

Once deployed, it creates the necessary fire compartmentation and helps prevent flames from passing into the adjacent area, without the need for side guides.

Where can the MFB-BLIND E-120 concertina fire curtain be used?

The MFB-BLIND E-120 is designed for projects that need fire compartmentation without giving up open, obstacle-free spaces. With no posts or guide rails at the sides and a curtain that stays hidden until activated, it separates fire sectors with minimal visual impact on the interior design.

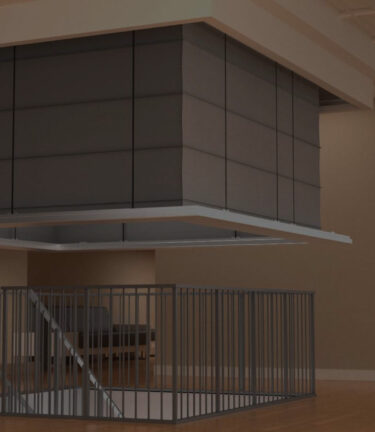

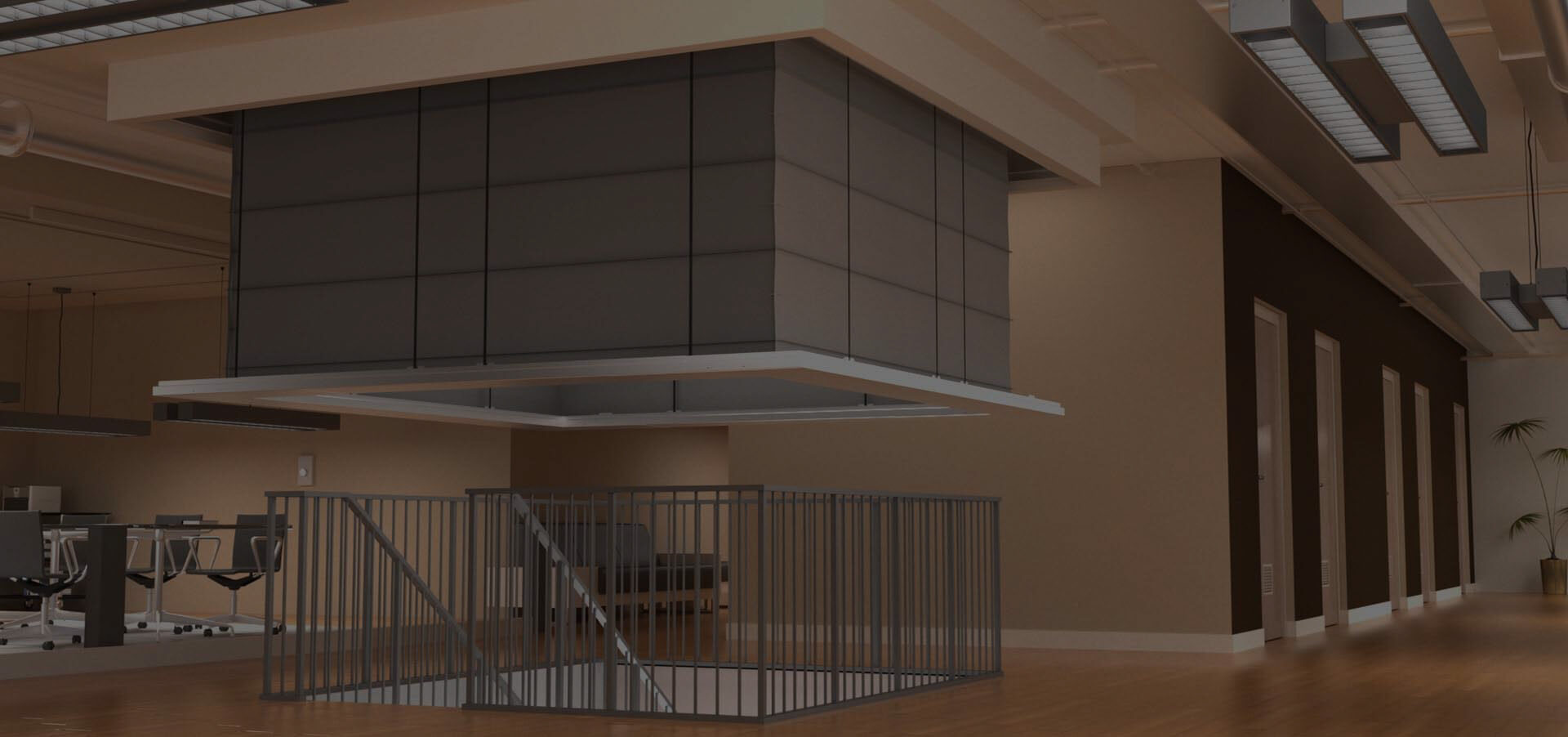

It can be installed in U, closed or free configurations, adapting to the geometry of the area to be protected, such as the perimeter of a floor opening around a staircase.

Protection objective

The MFB-BLIND E-120 provides integrity (E): for 120 minutes it prevents flames and hot gases from passing to the other side of the curtain. It does not provide thermal insulation (I), which limits the temperature on the unexposed side, nor low thermal radiation (W), which limits the heat radiated into the adjacent area.

Key features of the MFB-BLIND E-120 concertina fire curtain
  • E-120 integrity: with reference to EN 1634-1 and EN 15269-11.
  • No side guides: completely open spaces.
  • Concealed system: remains retracted in its head box until activated.
  • Automatic and controlled deployment: triggered by the control panel or the building’s fire detection system.
  • TGFS technology: SMK motor with Total Gravity Fail Safe Solution.
  • Head box options: open box or closed box (450 × 200 mm), with blind fixing.

Exploded view

  1. Head box with galvanised sheet finish.
  2. Removable supports to reinforce the box and hold the roller. Front opening. Manufactured with rounded edges, without sharp edges or corners.
  3. Roller without warhead for winding the strips.
  4. SMK motor, depending on model, with “TGFS” Total Gravity Fail Safe Solution technology.
  5. Fabric container tray.
  6. Metal straps for raising and lowering the tray.
  7. Fibreglass technical fabric.
  8. SMK motor on model with “TGFS” Total Gravity Controlled Fail Safe Solution technology.
  9. Control Unit CST2.
*Note: The visible parts of the system can be customised with a baked-on paint coating in a RAL colour of your choice.
I'm interested

Frequently asked questions

  • A concertina fire curtain is a fire-resistant curtain that folds into a compact head box and deploys automatically in the event of a fire to create compartmentation. The MFB-BLIND E-120 is Tecnitex's concertina fire curtain for open spaces.

  • No. This is its key differentiating feature: it compartmentalises without side guides, so the space remains completely open when the curtain is retracted.
