Modular fire curtain system

Fire curtain modular MFBD E-120

Description

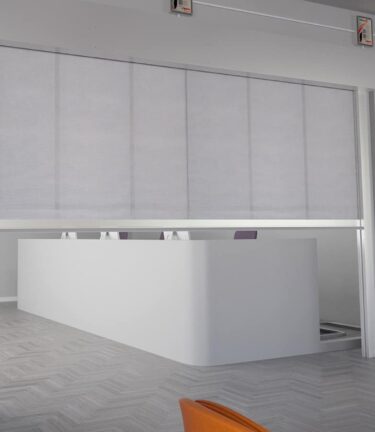

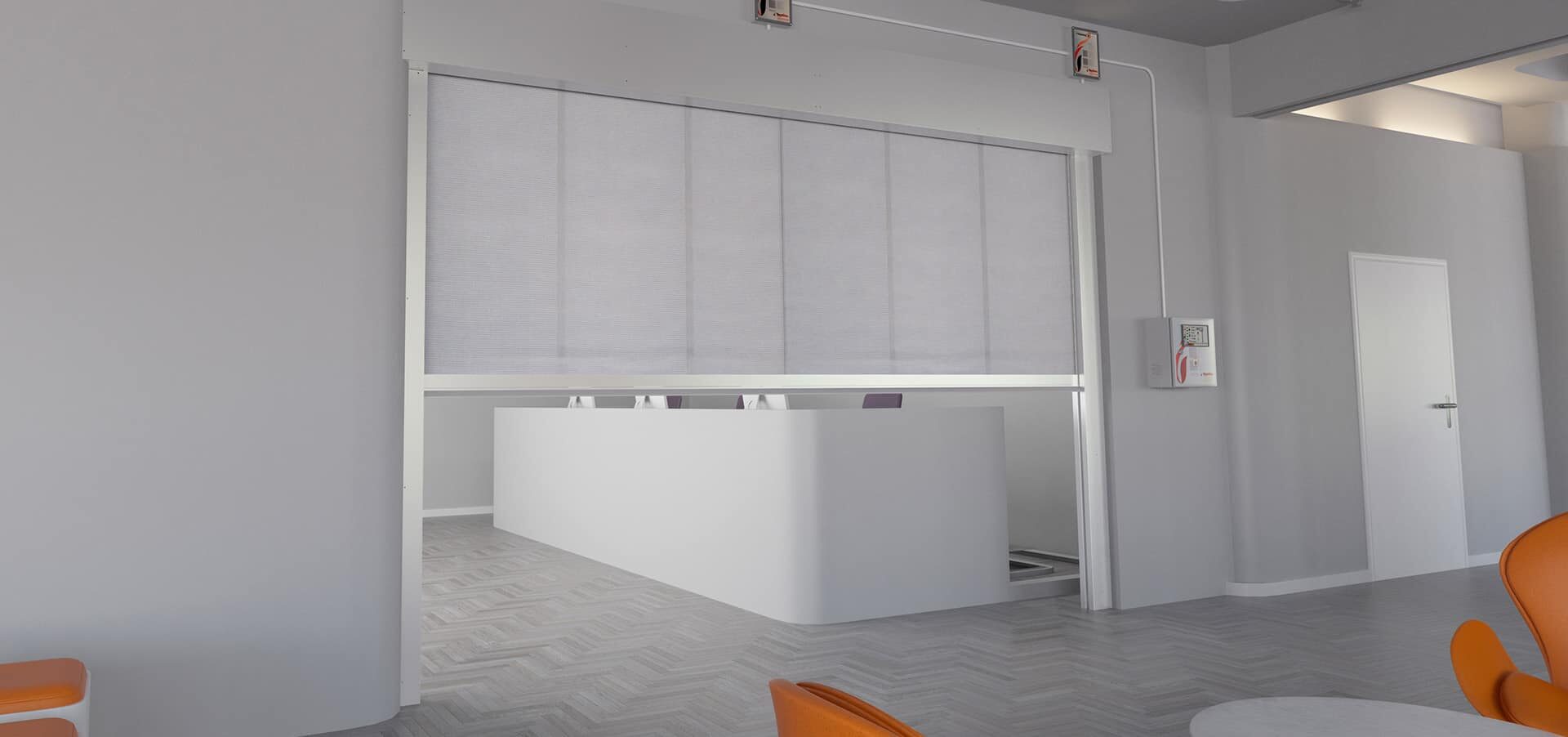

The Tecnitex MFBD E-120 is a modular fire curtain with an overlapping configuration. It is designed to compartmentalise sectors and limit the spread of flames from one area to another. It remains intact for 120 minutes when exposed to direct flame attack or temperatures above 1000 ºC (integrity). Its modular configuration allows it to work with large dimensions, up to 10,000 mm in height.
Protective purpose

The MFBD E-120 modular fire curtain combines two protective functions with different durations:

  • Avoiding the spread of flames to the neighboring sector.
  • Fire resistance 120 min at more than 1000 ºC (Integrity).
  • Reducing radiation 30 min.
Key features of the MFBD E-120 modular fire curtain
  • Technical fabric TECTEX 710-PU/IN/2.
  • Class E fiberglass reinforced with Inconel steel.
  • Fire-retardant polyurethane-based coating on both sides.
  • Pre-assembled system.
  • Modular configuration with standardised parts.

Optional features:

  • Choice of RAL colour.
  • Closing/opening push buttons.
How does the MFBD E-120 modular fire curtain work?

When the fire alarm is triggered, the curtain deploys by gravity. Its SMK motor uses TGFS (Total Gravity Controlled Fail Safe) technology, so the curtain can close even if the power supply fails.

What are the advantages of the MFBD E-120 modular system?
  • Modular configuration: the system is built from modules, so it can adapt to the opening each project needs.
  • Standardised parts: the modules share the same set of components, which keeps the configuration consistent from one project to another.
  • Pre-assembled system: the system is supplied pre-assembled.
  • Large dimensions: up to 10,000 mm in height.

Technical scheme

The MFBD E-120 is made up of a box that houses the roller and the fabric, lateral guides and a counterweight. The box and guide models depend on the height of the opening and on how the system is mounted. Drawer options CDV: Vertical container drawer with front and lower register. CDH: Horizontal container drawer with lower register. CDVF: Vertical container drawer with inverted front and lower register. I'm interested
BOXMAXIMUM DIMENSIONSBOX DIMENSIONS (E/F) mm
WIDTH (A) mmHEIGHT (B) mm
SERIE-HN/AUp to 6000250x170mm
SERIE-HxlN/A≥ 6000300x220mm
BOXMAXIMUM DIMENSIONSBOX DIMENSIONS (E/F) mm
WIDTH (A) mmHEIGHT (B) mm
SERIE-VN/AUp to 6000170x280mm
SERIE-VxlN/A≥ 6000220x380mm
BOXMAXIMUM DIMENSIONSBOX DIMENSIONS (E/F) mm
WIDTH (A) mmHEIGHT (B) mm
SERIE-VFN/AUp to 6000170x280mm
SERIE-VFxlN/A≥ 6000220x380mm
GUIDESMAXIMUM DIMENSIONSGUIDE DIMENSIONS (H/G) mm
WIDTH (A) mmHEIGHT (B) mm
SG-12012000Up to 450070x120mm
SG-13012000> 450070x130mm

Frequently asked questions about modular fire curtain

  • A fire curtain whose system is configured with modules and standardised parts. The MFBD E-120 is Tecnitex’s modular fire curtain with an overlapping configuration and 120 minutes of integrity.

  • In the MFBD E-120: modular configuration, standardised parts, a pre-assembled system and the capacity to cover large dimensions.
