Integrity fire curtain for outdoor areas

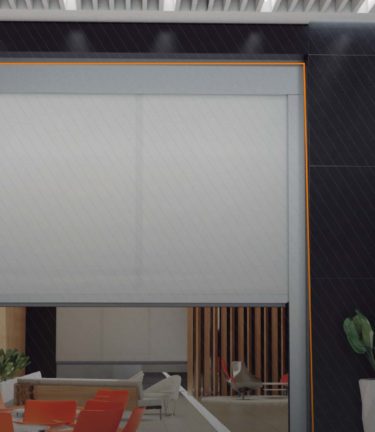

MFB E-120 Outdoor area fire curtain

Description

The TECNITEX MFB E-120 is an outdoor area fire curtain designed for fire compartmentation. It guarantees its integrity against direct flames or a temperature of over 1000°C for 120 minutes, preventing the propagation of flames to the adjoining sector.

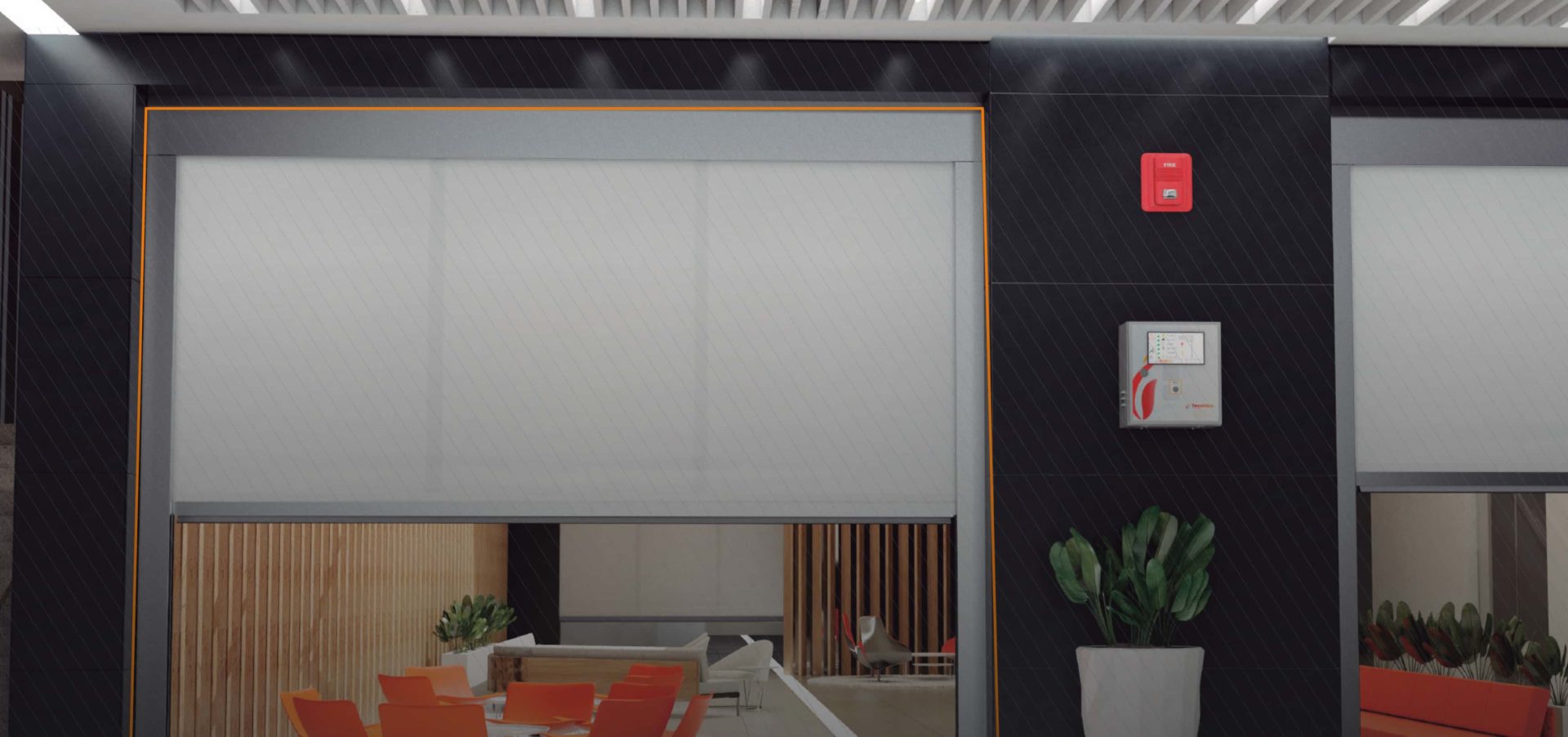

Protective purpose and performance

The MFB E-120 fire curtain closes off the opening when a fire breaks out and keeps the fire compartmentation intact, acting as a barrier against direct flames. Its protective performance is based on three features:

  • Preventing the propagation of flames to the neighbouring sector.
  • Fire resistance for 120 minutes at over 1000ºC (Integrity).
  • Large dimensions of up to 12000 x 8000 mm (Width/Height).

The fire resistance of the MFB E-120 is classified as integrity (E): for 120 minutes, the curtain prevents flames and hot gases from passing through to the unexposed side. Integrity should not be confused with thermal insulation (I). The curtain does not limit the temperature of its unexposed face, so if the fire advances, the elements of the adjoining sector may be affected by the thermal radiation it emits.

Why use the MFB E-120 as an outdoor area fire curtain?

Because the MFB E-120 provides integrity but not thermal insulation, the key factor when deciding where to install it is what lies next to its unexposed face. In outdoor areas, or in any space where there are no flammable elements near that face, the thermal radiation emitted during a fire has no nearby materials to affect. The main risk to control is then the spread of flames to the adjoining sector, which is exactly what the MFB E-120 is designed to prevent. That is why it is used in:

  • Outdoor areas where an opening must be closed off in the event of fire to prevent flames spreading to the adjoining sector.
  • Areas where the space next to the unexposed face is kept free of flammable materials.
  • Large openings that need a fire curtain of up to 12000 mm wide and 8000 mm high.

Where flammable elements are located close to the unexposed face, the effect of thermal radiation must be taken into account when choosing the fire curtain system.

Key features of the MFB E-120 outdoor area fire curtain
  • Fire integrity (E) for 120 minutes against direct flames or temperatures of over 1000ºC.
  • Large dimensions of up to 12000 mm wide and 8000 mm high, depending on the box and guide configuration.
  • Box options in Series S (S22) and Series R (R22 and R24), with box dimensions from 220 x 220 mm to 240 x 260 mm.
  • Lateral guides SG-120 and SG-130 with a fabric holding system along the whole vertical side.
  • Housing made from galvanised sheet metal and SMK motor with “TGFS” (Total Gravity Controlled Fail Safe Solution), depending on model.
  • Counterweight in various finishes and sizes for proper adaptation to the box or suspended ceilings.
  • The system is made up of technical textile reference TECTEX 710-PU/IN/2, made from class E fibreglass reinforced with steel Inconel, covered with a flame retardant polyurethane compound on both sides.

Technical diagram

The technical diagram shows the configuration of the MFB E-120 fire curtain: the box that houses the rolled technical textile, the lateral guides and the maximum opening dimensions (width A / height B). The tables below detail the maximum dimensions for each box series (S22, R22 and R24) and guide type (SG-120 and SG-130), together with the box dimensions (E/F) and guide dimensions (H/G). I'm interested
BOX MAXIMUM DIMENSIONS (A)BOX DIMENSIONS (E/F) mm
SERIE-S22Up to 5500 wide (depending on height)220X220 MM
SERIE-S22Up to 8000 high for max. width of 3500220X220 MM
BOXMAXIMUM DIMENSIONS (A) mmBOX DIMENSIONS (E/F) mm
WIDTH (A) mmHEIGHT (B) mm
SERIE-R22120006500220X220 MM (WIDTH/HEIGHT)
SERIE-R24120008000240X260 MM (WIDTH/HEIGHT)
GUIDESMAXIMUM DIMENSIONS (A) mmGUIDE DIMENSIONS (H/G) mm
WIDTH (A) mmHEIGHT (B) mm
SG-12012000Up to 450070X120 MM
SG-130 12000> 450070X130 MM

Frequently asked questions about the MFB E-120

  • An outdoor area fire curtain is a fire curtain intended to close off openings in outdoor areas, or in spaces with no flammable elements near its unexposed face, to prevent flames from spreading from one sector to another. The TECNITEX MFB E-120 is a fire curtain of this type, with 120 minutes of fire integrity (E).

  • Because it is an integrity solution: it stops direct flames for 120 minutes, but it does not provide thermal insulation, so the elements of the adjoining sector may be affected by thermal radiation. In outdoor areas, or where there are no flammable elements near the unexposed face, this radiation has no nearby materials to affect.

  • The MFB E-120 can reach up to 12000 mm wide and 8000 mm high with the Series R24 box. Maximum dimensions depend on the box and guides: Series R22 reaches 12000 x 6500 mm, and Series S22 reaches up to 5500 mm wide (depending on height) or up to 8000 mm high for a maximum width of 3500 mm.
