MFB EI-180 Irrigated fire curtain

Description

TECNITEX MFB EI-180 is an automatic irrigated fire curtain for compartmentation between fire sectors. It provides integrity and thermal insulation for 180 minutes, keeping fire, smoke and heat in the sector where the fire started.
How does the MFB EI-180 irrigated fire curtain work?

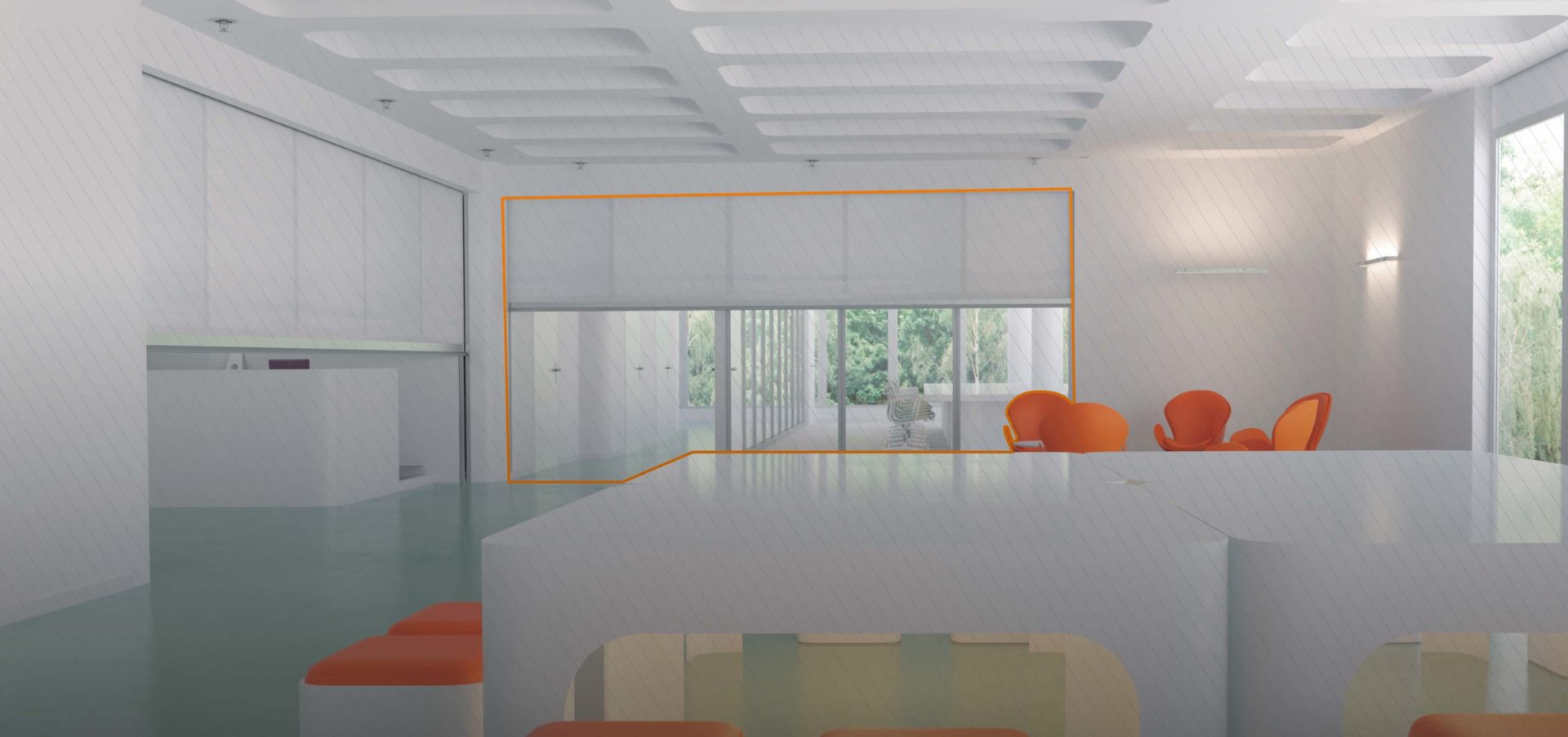

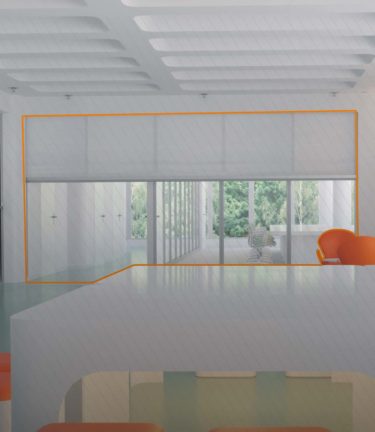

The technical textile is rolled onto a roller inside its box. In case of fire, it deploys and closes the opening between two fire sectors, held along its lateral guides.

What makes it an irrigated fire curtain is its irrigation system, which applies water to the curtain and contributes to its integrity and thermal insulation performance. The irrigation system can be configured in two ways:

  • Open nozzles, activated by electrovalve: an electrovalve opens the water supply to the nozzles.
  • Closed sprinklers, activated by thermal fuse: the sprinklers open when their thermal fuse is activated.
What does EI-180 mean?

EI-180 describes the two fire-resistance performances of the curtain and how long it maintains them:

  • E – Integrity: the curtain prevents fire and flames from passing through it.
  • I – Thermal insulation: the curtain limits the heat transmitted to the non-exposed side, keeping its temperature within the established limits.
Protective purpose

The MFB EI-180 keeps the fire in the sector where it started while limiting the heat transmitted to the protected side. These figures summarise its performance:

  • Temperature of the non-exposed side under 140 ºC (Insulation).
  • 180-minute fire resistance at over 1000 ºC (Integrity).
  • Dimensions of up to 12000 mm wide and 8000 mm high, depending on the box series (Width/Height).
Key features of the MFB EI-180 irrigated fire curtain
  • Technical textile: TECTEX 710-PU/IN/2.
  • Base material: class E fibreglass reinforced with Inconel steel.
  • Coating: flame-retardant polyurethane compound on both sides.
  • Irrigation: open nozzles or closed sprinklers.
  • Lateral guides: textile holding system along the whole vertical side, for proper isolation of fire and smoke.
  • Reference standards: EN 1634-1 and EN 15269-11.

Technical diagram

The technical diagram and the tables below show the configuration options for the MFB EI-180: box series (S22, R22 and R24), lateral guides (SG-120 and SG-130) and the dimensions of each one. The system can also be supplied with different closure options (standard, flat or wide flange trim and inverted cover) and types of fixing (front, ceiling, flush-mounted, inside or mixed). I'm interested
BOX MAXIMUM DIMENSIONS (A) mmBOX DIMENSIONS (E/F) mm
SERIE-S22Up to 5500 wide (depending on height)220x220mm
SERIE-S22Up to 8000 high for max. width of 3500220x220 mm
BOXMAXIMUM DIMENSIONS (A) mmBOX DIMENSIONS (E/F) mm
WIDTH (A) mmHEIGHT (B) mm
SERIE-R22120006500220x220 mm
SERIE-R24120008000240x260 mm
GUIDESMAXIMUM DIMENSIONSGUIDE DIMENSIONS (H/G) mm
WIDTH (A) mmHEIGHT (B) mm
SG-12012000Up to 450070X120mm
SG-13012000> 450070X130mm

MFB EI-180 irrigated fire curtain FAQs

  • The curtain deploys automatically when the fire alarm is triggered, closing the opening before fire and smoke can spread to the adjacent sector.

  • An E-rated curtain only provides integrity: it stops fire and flames from passing through. The MFB EI-180 also provides thermal insulation, so it limits the heat that reaches the protected side as well.
